Precision R410A In Row Air Conditioner For Data Center 25KW

  • 1
  • 2
  • 3

Brand Name : COOLNET

Model Number : CYA,M08,CR012

Certification : CE,ISO

Place of Origin : CHINA

MOQ : 1set

Price : 1800-30000USD

Payment Terms : T/T, L/C

Supply Ability : 300 PCS PER MONTG

Delivery Time : 10-25 working days

Packaging Details : Packed in plywooden case, standard export package

Cooling capacity : 7-50KW

Type : InRow Unit

Operating voltage : 380/400 VAC,230 VAC,220V

Product name : In Row Type Precision Air Conditioning

Refrigerant : R410A

Application : Data Center, IT room , Computer room, Cold/hot aisle

Color : Black/Grey

Fan type : Axial Fan,Direct driven or belt driven,direct driven/belt driven/AC/EC plug fan,AC direct drive fan

Power : 3N-380V-50Hz,220v/50hz/60hz

Airflow : 2000~50000 m3/h

Voltage : 380v/220v,220V/380V,380V/415V

Contact Now

Medium And Large Computer Room Data Center In-Row Room Air Conditioner CoolRow 25KW

R410A Inrow Cooling Unit For Modular Data Center Cooling

Product Introduction

The in -row air conditioner, also known as the in-row refrigeration unit, is a precision refrigeration system specially designed for high heat density racks. Because the unit is close to the heat source, the base return air temperature and evaporating pressure can be increased.

The cooling efficiency is improved. The unit adopts EC fan and DC inverter EC compressor to make the system achieve high refrigeration efficiency and low air-conditioning energy consumption. It can be equipped with air-cooled and water-cooled.

The three condensation methods of type and chilled water type can be widely used in high heat density computer rooms such as data centers (IDC), modular data centers, and container data centers.

Main Features

  • Room Air Conditioning Product Description
  • Single rack with power larger than 3kW
  • High heat density computer room
  • Modular DC
  • Container type DC
  • DC with low PUE
  • Hot spot reconstruction
 Precision R410A In Row Air Conditioner For Data Center 25KW

Scope of Application

Precision R410A In Row Air Conditioner For Data Center 25KW
  • Data center
  • Computer room
  • Network room
  • Server room
  • Switch room
  • Communication base station

Air Supply Method

Precision R410A In Row Air Conditioner For Data Center 25KW Precision R410A In Row Air Conditioner For Data Center 25KW

Technical Parameter

Model CRA013A CRA020A CRA040A CRA050A CRA060A
Air supply Front/Side Front/Side Front Front Front
Power supply 380VAC/3Ph/50Hz
Cooling capacity-KW 13.2 26.7 42.6 53.3 63.9
Sensible cooling-KW 13.2 26.7 42.6 53.3 63.9
Compressor
Refrigerant R410A
Quantity 1
Fan
Fan type EC Centrifugal fan
Quantity 4 5 2 3 3
Air volume-m3/h 3200 5000 8800 11000 12500
Heater
Heat type PTC
Capacity-KW 2 3 6 6 6
Humidification
Capacity-KW 1 1.5 3 3 3

Certificates

Precision R410A In Row Air Conditioner For Data Center 25KW

Factory Details

Precision R410A In Row Air Conditioner For Data Center 25KW

Packing & Delivery

Precision R410A In Row Air Conditioner For Data Center 25KW

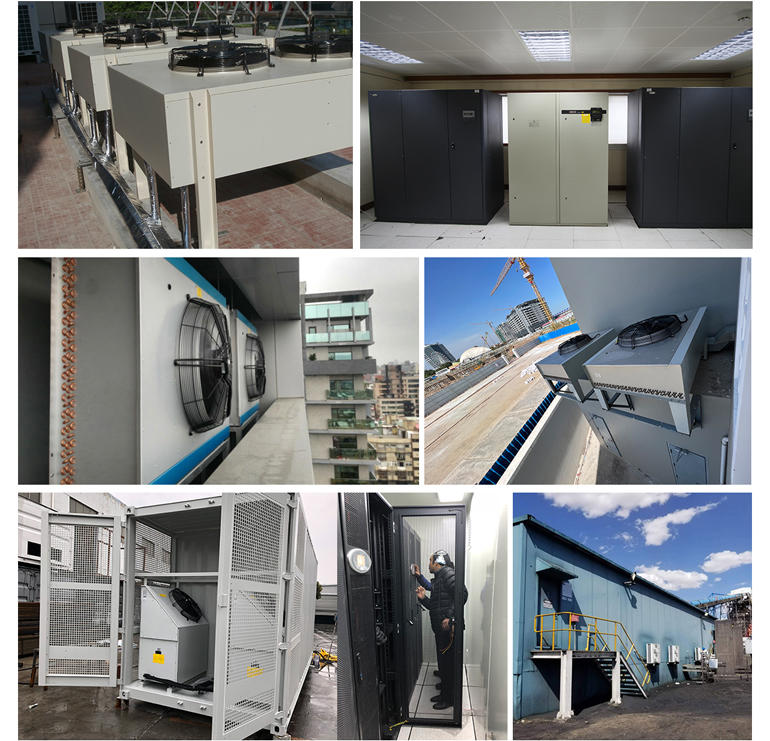

Case

Precision R410A In Row Air Conditioner For Data Center 25KW
